| Material | Types | Sizes |
|---|---|---|

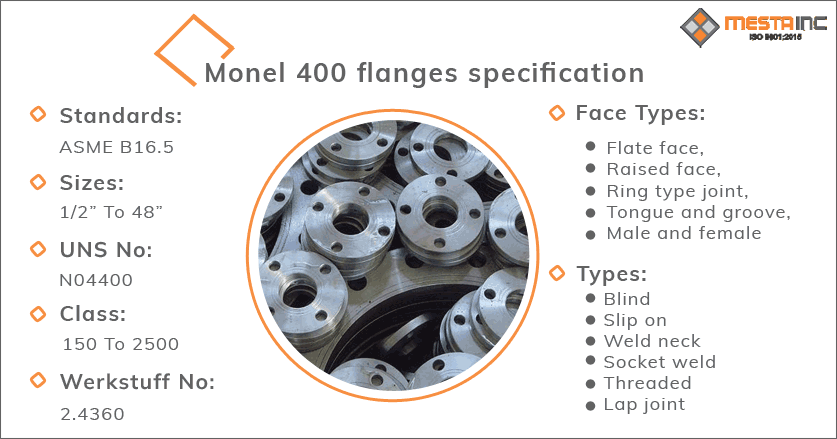

| Monel 400 |
|
|
| Pressure Rating | UNS | DIN |
| Class 150 to Class 2500 | N04400 | WNR 2.4360 |
| Testing | ASME/ANSI | Face Types |
|
|
|
| Product | Price |
| FLANGE MONEL 400 4 BL 300 RF 125-250 RMS | US $387.12 Per Piece |
| MONEL 400 FLANGES 1/2 BL 600 RF | US $300.41 Per Piece |
| MONEL 400 FLANGES 3/4 WN 600 RF XS/80S | US $59.39 Per Piece |
Monel 400 Forged Flange
Alloy 400 Slip on Flange
UNS N04400 Blind Flange
DIN 2.4360 Weld Neck Flanges
ASTM B564 UNS N04400 Plate Flange
Nickel 400 Lap Joint Flange
Monel alloy 400 Threaded Flange
Ni 400 Ring and Spacer
NW 4400 Spectacle Blind Flange
Wnr 2.4360 Long weld neck flange
DIN 2.4360 Reducing Flange
Alloy 400 Expander Flange
Wnr 2.4360 Socket Weld Flange
Monel 400 RTJ Flanges
Monel alloy 400 Ring Joint Flanges
ASTM B564 UNS N04400 BLRF Flanges
UNS N04400 SORF Flanges
Nickel 400 Raised Face Flange
Ni 400 Tongue and groove flange
NW 4400 WNRF Flanges
Monel 400 SWRF Flanges
Nickel 400 Flat Face Flanges
DIN 2.4360 Pipe Flanges
NW 4400 Exhaust flanges
Class 150 Monel alloy 400 flanges
Class 300 Alloy 400 flange
Class 600 ASTM B564 UNS N04400 pipe flanges
Class 900 Ni 400 flanges
Class 1500 Wnr 2.4360 plate flange
Class 2500 UNS N04400 flanges
| Normal Pipe Size | Diameter D |
Thickness B |
Diameter A |
Diameter OD |
Height H |
Diameter K |
Diameter L |
| 1/2 | 3.5 | 0.38 | 1.19 | 0.84 | 1.81 | 2.38 | 5/8 |
| 3/4 | 3.88 | 0.44 | 1.5 | 1.05 | 2 | 2.75 | 5/8 |
| 1 | 4.25 | 0.5 | 1.94 | 1.32 | 2.12 | 3.12 | 5/8 |
| 1.1/4 | 4.62 | 0.56 | 2.31 | 1.66 | 2.19 | 3.5 | 5/8 |
| 1.1/2 | 5 | 0.62 | 2.56 | 1.9 | 2.38 | 3.88 | 5/8 |
| 2 | 6 | 0.69 | 3.06 | 2.38 | 2.44 | 4.75 | 3/4 |
| 2.1/2 | 7 | 0.81 | 3.56 | 2.88 | 2.69 | 5.5 | 3/4 |
| 3 | 7.5 | 0.88 | 4.25 | 3.5 | 2.69 | 6 | 3/4 |
| 3.1/2 | 8.5 | 0.88 | 4.81 | 4 | 2.75 | 7 | 3/4 |
| 4 | 9 | 0.88 | 5.31 | 4.5 | 2.94 | 7.5 | 3/4 |
| 5 | 10 | 0.88 | 6.44 | 5.56 | 3.44 | 8.5 | 7/8 |
| 6 | 11 | 0.94 | 7.56 | 6.63 | 3.44 | 9.5 | 7/8 |
| 8 | 13.5 | 1.06 | 9.69 | 8.63 | 3.94 | 11.75 | 7/8 |
| 10 | 16 | 1.12 | 12 | 10.75 | 3.94 | 14.25 | 1 |
| 12 | 19 | 1.19 | 14.38 | 12.75 | 4.44 | 17 | 1 |
| 14 | 21 | 1.31 | 15.75 | 14 | 4.94 | 18.75 | 1.1/8 |
| 16 | 23.5 | 1.38 | 18 | 16 | 4.94 | 21.25 | 1.1/8 |
| 18 | 25 | 1.5 | 19.88 | 18 | 5.44 | 22.75 | 1.1/4 |
| 20 | 27.5 | 1.62 | 22 | 20 | 5.62 | 25 | 1.1/4 |
| 24 | 32 | 1.81 | 26.12 | 24 | 5.94 | 29.5 | 1.3/8 |
| Monel 400 | Ni | C | Al | Mn | Si | Fe | Cu | S | Co | Cr |
| 63.0 min | 0.3 max | 0.50 max | 2.0 max | 0.5 max | 1.0 – 2.5 | 28.0 – 34.0 | 0.02 max | – | – |
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 8.8 g/cm3 | 1350 °C (2460 °F) | Psi - 35,000 , MPa - 240 | Psi - 80,000 , MPa - 550 | 40 % |
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
| Monel 400 | N04400 | 2.4360 | NU-30M | NiCu30Fe | NW 4400 | NA 13 | 28-2,5-1,5 |
| Property | Value (Metric) | Value (Imperial) |
|---|---|---|
| Density | 8.80*103 kg/m3 | 549 lb/ft3 |
| Modulus of Elasticity | 179 GPa | 26,000 ksi |
| Thermal Expansion (20ºC) | 13.9*10-6º C-1 | 7.7*10-6 in/(in*ºF) |
| Specific Heat Capacity | 427 J/(kg*K) | 0.102 BTU/(lb*ºF) |
| Thermal Conductivity | 21.8 W/(m*K) | 151 BTU*in/(hr*ft2*ºF) |
| Electric Resistivity | 54.7*10-8 Ohm*m | 54.7*10-6 Ohm*cm |
| NPS | Threaded | Loose | WNRF | BLRF | SWRF | SORF |
|---|---|---|---|---|---|---|
| ½ | 1 | 1 | 2 | 2 | 2 | 1 |
| 1 | 2 | 2 | 3 | 2 | 2 | 2 |
| 1¼ | 3 | 3 | 3 | 3 | 3 | 3 |
| 2 | 5 | 5 | 6 | 5 | 5 | 5 |
| ¾ | 2 | 2 | 2 | 2 | 2 | 2 |
| 2½ | 8 | 8 | 10 | 7 | 8 | 8 |
| 3 | 9 | 9 | 11.5 | 9 | 9 | 9 |
| 1½ | 3 | 3 | 4 | 4 | 3 | 3 |
| 3½ | 12 | 11 | 12 | 13 | 11 | 11 |
| 4 | 13 | 13 | 16.5 | 17 | 13 | 13 |
| 6 | 19 | 19 | 26 | 27 | 19 | 19 |
| 8 | 30 | 30 | 42 | 47 | 30 | 30 |
| 10 | 43 | 43 | 54 | 70 | 43 | 43 |
| 5 | 15 | 15 | 21 | 20 | 15 | 15 |
| 12 | 64 | 64 | 88 | 123 | 64 | 64 |
| 14 | 90 | 105 | 114 | 140 | 90 | 90 |
| 18 | 130 | 160 | 165 | 220 | 130 | 130 |
| 20 | 165 | 195 | 197 | 285 | 165 | 165 |
| 22 | 185 | 245 | 225 | 355 | 185 | 185 |
| 16 | 98 | 140 | 140 | 180 | 98 | 106 |
| 24 | 220 | 275 | 268 | 430 | 220 | 220 |
| Hot working | 648-1176°C (1200-2150°F) |
|---|---|
| Annealing | 926°C (1700°F) |
